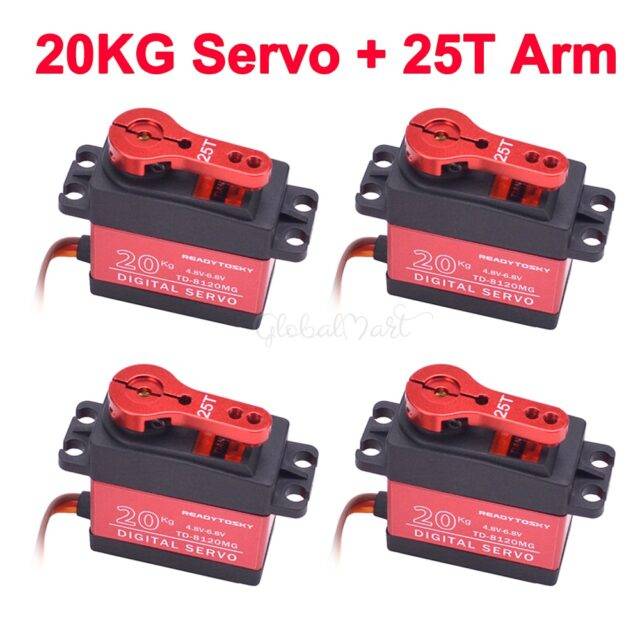

- Item Type: Servo Motor
- Shell Material: CNC Aluminium
- Control System: PWM (1500 u-sec is the Central Point)
- Working Voltage: 4.8V ~ 6V
- Working Temperature: -20C°~ +60C°
- Torque: 4.8V / 17.2 * kg.cm, 6.0V / 20.3 * kg.cm
- Idle Speed: 4.8V / 0.15 sec / 60 deg, 6.0V / 0.13 sec / 60 deg
- Steering Angle: 180 / 270 degree
- Idle Current: 4.8V / 470 mA, 6.0V /650 mA
- Load Current: 4.8V / 750 mA, 6.0V / 950 mA
- Dead Band: 2u sec
- Moving Angle: 60°±10°
- Drive Type: MOS Drive
- Motor Type: Cored Motor
- Potentiometer Type: Direct Drive
- Signal Booster Type: Digital
- Size: 4.05 x 2.02 x 4.03 cm / 1.59 x 0.79 x 1.58 inch
- Weight : 62 g / 0.14 lbs (without accessories)
- Ball Bearing:2BB
- Gear Material: Metal Gear
- Case Material: PA66, Fiber40%
- Wire length: 260 mm / 10.24 inch
- Plug Type: 26AWG,JR plug
- Brown Wire: Negative
- Red wire: Positive
- Orange wire: Singal
Package Includes:
- 1 x Servo Motor
